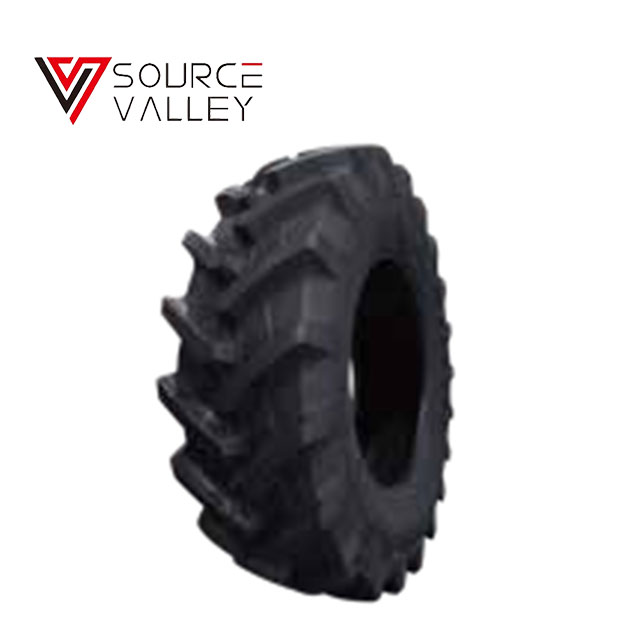

TR-1W

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • ARMOUR

Applicable models:Widely applicable to various types of agricultural machinery such as tractors, harvesting machinery,and cropprotection machinery.

  • Excellent load-bearing capacity.

  • Larger grounding area, effectively protecting the soil.

  • Excellent wear resistance and puncture resistance.

  • Unique pattern block design,providingstrong driving force and self-cleaning performance.

  • High-stength tire body,good dimensional stability, and high load-bearing capacity.

  • Efficient operation,low slip rate,and more fuel-efficient.

  • High performance rubber material design extends tire service life.


SIZEPRPATTERN CODESTANDARD RIMTREAD DEPTH
(mm)		OVERALL DIAMETER
(mm)		SECTION WIDTH
(mm)
15.5R38134 A8TR-1WW14L441569394
15.5R38139 A8TR-1WW14L441569394
28.1R26170 A8TR-1WDW24B421730728
28LR26165 A8TR-1WDW25B581615714
240/70R16104DTR-1WW838742244
240/85R24107 A8TR-1WW8421018244
260/70R16109DTR-1WW839770258
260/70R20113DTR-1WW839872258
270/95R32132DTR-1WW9441327275
270/95R32134DTR-1WW9441327275
270/95R32136DTR-1WW9441327275
270/95R48142DTR-1WW9441733275
270/95R48144DTR-1WW9441733275
280/70R16102DTR-1WW941798282
280/70R16112DTR-1WW941798282
280/70R18104DTR-1WW941849282
280/70R18114DTR-1WW941849282
280/70R18126DTR-1WW941849282
280/70R20116DTR-1WW941900282
280/70R20122DTR-1WW941900282
280/85R20112 A8TR-1WW1044984282
280/85R24115A8TR-1WW10441086282
280/85R28118 A8TR-1WW10441187285
300/70R20110DTR-1WW942952295
300/70R20120DTR-1WW942952295
320/70R20113DTR-1WW1043982319
320/70R20123DTR-1WW1043982319
320/70R20130 DTR-1WW1043982319
320/70R20134DTR-1WW1043982319
320/70R24116DTR-1WW10431094319
320/70R24131DTR-1WW10431094319
320/80R42141A8TR-1WW10421580319
320/85R24122 A8TR-1WW11451154319
320/85R24129 A8TR-1WW11451154319
320/85R24133 A8TR-1WW11451154319
320/85R28124 A8TR-1WW11451255319
320/85R32142 A8TR-1WW11431357329
320/85R34133 A8TR-1WW11451408319
320/90R46146 A8TR-1WW10471744319
320/90R54151DTR-1WW10421958330
340/70R24135DTR-1WW11421095343
340/85R24125 A8TR-1WW12471188343
340/85R28127 A8TR-1WW12471289345
340/85R38133 A8TR-1WW12471543343
360/70R20120 DTR-1WW11451042357
360/70R20138DTR-1WW11451042357
360/70R24122DTR-1WW11451152357
360/70R24133DTR-1WW11451152357
360/70R28130DTR-1WW11451251357
380/70R24125DTR-1WW12461190380
380/70R28127 DTR-1WW12461293380
380/80R38142 A8TR-1WW13491573380
380/85R24131 A8TR-1WW13481256380
380/85R24142 A8TR-1WW13481256380
380/85R24145 A8TR-1WW13481256380
380/85R26127 A8TR-1WW13481295380
380/85R26137 A8TR-1WW13481295380
380/85R28133 A8TR-1WW13481357380
380/85R30135 A8TR-1WW13481408380
380/85R34137 A8TR-1WW13471510380
380/90R50151DTR-1WW12461954380
380/90R50160DTR-1WW12461954380
420/70R24130DTR-1WW13471248418
420/70R24136DTR-1WW13471248418
420/70R24156DTR-1WW13471248418
420/70R28133DTR-1WW13471349418
420/80R46159 A8TR-1WW13471840418
420/85R24137 A8TR-1WW15L481324429
420/85R24142 A8TR-1WW15L481324429
420/85R24146 A8TR-1WW15L481324429
420/85R28139 A8TR-1WW15L481425429
420/85R28144 A8TR-1WW15L481425429
420/85R28148 A8TR-1WW15L481425429
420/85R28150 A8TR-1WW15L481425429
420/85R30140 A8TR-1WW15L511476429
420/85R30154 A8TR-1WW15L511476429
420/85R34142 A8TR-1WW15L511578429
420/85R38144 A8TR-1WW15L511679429
420/85R38165 A8TR-1WDW15L511679429
420/90R30147 A8TR-1WDW13521518418
420/95R46164DTR-1WW13491950418
440/65R24128 DTR-1WW14L471182440
460/85R24144 A8TR-1WDW16461395460
460/85R24147 A8TR-1WDW16461395460
460/85R30145 A8TR-1WW16L521544455
460/85R30153 A8TR-1WW16L521544455
460/85R34147 A8TR-1WW16L521646455
460/85R34165 A8TR-1WW16L521646455
460/85R38149 A8TR-1WW16L521747455
460/85R38163 A8TR-1WW16L521747455
460/85R42150 A8TR-1WDW16L521849455
480/65R24140DTR-1WW15L491234479
480/65R28136DTR-1WW15L48.51335479
480/70R24155DTR-1WW15L471321486
480/70R28140DTR-1WW15L501421479
480/70R30141DTR-1WW15L501478479
480/70R30147DTR-1WW15L501478479
480/70R30156DTR-1WW15L501478479
480/70R30161DTR-1WW15L501478479
480/70R30165DTR-1WW15L501478479
480/70R34143DTR-1WW15L501580479
480/70R34155DTR-1WW15L501580479
480/70R38145DTR-1WW15L501681479
480/80R38154 A8TR-1WW15L521733479
480/80R38164 A8TR-1WW15L521733479
480/80R38171 A8TR-1WW15L521733479
480/80R42151 A8TR-1WW15L521835479
480/80R46158 A8TR-1WW15L521936479
480/80R50159 A8TR-1WW15L522038479
480/85R28151A8TR-1WDW15L501527479
520/70R34148DTR-1WDW16L511640516
520/70R38150DTR-1WW16L511749516
520/70R38160 DTR-1WW16L511749516
520/70R38168DTR-1WW16L511749516
520/70R38172DTR-1WW16L511749516
520/85R38155 A8TR-1WDW18L541849528
520/85R38169 A8TR-1WDW18L541849528
520/85R38174 A8TR-1WDW18L541849528
520/85R42157 A8TR-1WDW18L541951528
520/85R42167 A8TR-1WDW18L541951528
520/85R46158 A8TR-1WDW18L542052528
520/85R46174 A8TR-1WDW18L542052528
540/65R24140DTR-1WW18L521312550
540/65R24154DTR-1WW18L521312550
540/65R24156DTR-1WW18L521312550
540/65R24164DTR-1WW18L521312550
540/65R28152DTR-1WW16L521413540
540/65R28142DTR-1WW18L521413550
540/65R30143DTR-1WW18L521464540
540/65R30150DTR-1WW18L521464540
540/65R30154DTR-1WW18L521464540
540/65R34145DTR-1WW18L521566550
540/65R34152DTR-1WW18L521566550
540/65R34156DTR-1WW18L521566550
540/65R38147DTR-1WW18L521667550
540/65R38153DTR-1WW18L521667550
540/65R38161DTR-1WW18L521667550
540/75R28154DTR-1WDW18L501521550
580/70R38155DTR-1WW18L541827577
580/70R42158 DTR-1WW18L541879577
580/85R38166 A8TR-1WDW18L541951577
600/65R28147DTR-1WDW20B531491591
600/65R28154DTR-1WDW20B531491591
600/65R34151DTR-1WDW20B531644591
600/65R34163DTR-1WDW20B531644591
600/65R38153DTR-1WDW20B531745591
600/65R38165DTR-1WDW20B531745591
600/70R28157DTR-1WDW20B541551591
600/70R30152DTR-1WDW20B541602591
600/70R30158 DTR-1WDW20B541602591
620/70R30153DTR-1WDW20B551632625
620/70R30160DTR-1WDW20B551632625
620/70R30165DTR-1WDW20B551632625
620/70R30171DTR-1WDW20B551632625
620/70R42160DTR-1WDW20B551935625
620/70R42172DTR-1WDW20B551935625
620/70R46162DTR-1WDW20B562036625
620/75R26166DTR-1WDW20B571590625
620/75R34170DTR-1WDW20B571794625
650/65R38157DTR-1WDW20B541811645
650/65R38166DTR-1WDW20B541811645
650/65R42158DTR-1WDW20B541913645
650/65R42165DTR-1WDW20B541913645
650/65R42170DTR-1WDW20B541913645
650/70R42163DTR-1WDW20B571976645
650/75R32167DTR-1WDW20B541790654
650/75R38169DTR-1WDW20B581941645
650/85R38173 A8TR-1WDW20B612071645
710/60R34164DTR-1WDW23B561716716
710/70R38166DTR-1WDW23B591959716
710/70R38171DTR-1WDW23B591959716
710/70R38178DTR-1WDW23B591959716
710/70R42168DTR-1WDW23B592061716
710/70R42173DTR-1WDW23B592061716
710/70R42176DTR-1WDW23B592061716
710/75R32177DTR-1WDW23B611879716
750/65R26166DTR-1WDW25B581636754
750/65R26171DTR-1WDW25B581636754
800/65R32172DTR-1WDW27B601853798
800/65R32178DTR-1WDW27B601853798
800/70R38178DTR-1WDW27B592085798
820/60R26.5190A8TR-1WAG28.00451650820
900/60R32176DTR-1WDW28B611893896
900/70R32176DTR-1WDW28B642073896
900/70R32186DTR-1WDW28B642073896
IF1050/50R32185DTR-1WDW36B5518631038
IF1050/50R32192DTR-1WDW36B5518631038
IF380/90R46168 A8TR-1WW13501852383
IF380/90R54171DTR-1WW13472056383
IF460/85R24158 A8TR-1WDW16461395460
IF520/85R38180 A8TR-1WDW18L541849528
IF520/85R42173 A8TR-1WDW18L541951528
IF520/85R42177 A8TR-1WDW18L541951528
IF580/70R42178DTR-1WW18L541879577
IF580/80R34172DTR-1WDW20B571792576
IF580/80R34177DTR-1WDW20B571792576
IF580/80R34180DTR-1WDW20B571792576
IF600/70R28 CFO173DTR-1WDW20B541551591
IF800/65R32181DTR-1WDW27B601853798
IF800/70R38179DTR-1WDW27B592085804
IF800/70R38184DTR-1WDW27B592085804
IF800/70R38190 DTR-1WDW27B592085804
IF900/60R32185DTR-1WDW30B611893896
IF900/60R32188DTR-1WDW30B611893896
IF900/60R38188 DTR-1WDW30B582045891
VF320/90R46165DTR-1WW11471744323
VF380/90R46173 A8TR-1WW13501852383
VF460/85R34182 A8TR-1WW16L521646455
VF480/70R34163DTR-1WW15L501580479
VF520/85R42177DTR-1WDW18L541951528
VF600/70R30168DTR-1WDW20B541602591
VF650/60R34168DTR-1WDW23B501644650
VF710/70R42188 DTR-1WDW25B592061705
VF800/70R38190DTR-1WDW27B592085804
VF900/60R38193DTR-1WDW30B582045891
VF900/60R42189DTR-1WDW30B582147891

FAQ:

What is your minimum order quantity (MOQ) for tires? Do you support mixed loading of different specifications?

A：The MOQ for regular passenger car tires is one 20GP container, and the MOQ for truck & bus tires/OTR tires/agricultural tires is determined by specific specifications. Regular orders support mixed loading of different specifications in the same category to meet customers' diversified procurement needs.

For more inquiries, please contact us for professional assistance.
